2022 Kodiak 700 EPS

Kodiak 700 EPS

Designed for farmers, foresters and industrial users who need a tough utility vehicle for hard work in extreme conditions, featuring Electronic Power Steering, the user-friendly Kodiak 700 EPS is the full spec professional utility ATV with the comfort to work all day. #DRIVENBYRESULTS
Image Thumbnail

The beauty of work.

Powered by the high torque MK II 686cc engine - and featuring a compact chassis with a plush seat for day-long riding comfort - this extraordinary worker can carry a 140kg payload plus rider, and tow up to 600kg.

The smooth-running Ultramatic® CVT transmission and 2WD/4WD system with Diff-lock make this ATV ideal for towing, and the Electric Power Steering makes every working day that little bit easier.

At a glance

  • Full spec professional utility ATV
  • Powerful 686cc SOHC 4-stroke high-torque engine
  • The most durable ATV transmission on the market
  • On the Fly Driver selectable wheel drive system
  • Large cooling capacity for work and towing
  • Professional capacity to stow or tow cargo
  • Self & Buddy rescue with standard winch
  • Low maintenance hybrid stopping power
  • Comfortable and terrain capable suspension
  • Less fatigue and more precise handling by EPS
  • T-category homologation optional

Kodiak 700 EPS

Yamaha Utility ATVs are built with one goal in mind: easing the workloads of those in tough outdoor environments.

Kodiak 700 EPS
360° quick view

    Key Features

    Features Gallery
    Image Thumbnail
    • alt

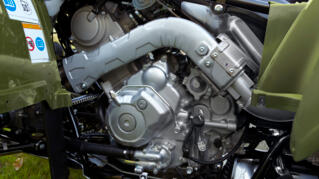

      MK II 686cc SOHC engine

      The hard-working Kodiak 700 EPS features a powerful large capacity engine that delivers class-leading torque and power. Featuring the 2nd generation MK II 686 engine SOHC 4-valve cylinder head, with EFI Throttle body, fine-tuned ECU mapping, refined tolerances and other updates result in lower fuel consumption increased torque and smoother engine performance.

    • alt

      Ultramatic® transmission

      Equipped with High, Low, Reverse, Neutral and Park modes, Yamaha's industry-leading Ultramatic® automatic transmission is one of the ATV world’s most durable and efficient CVT systems. The utility oriented gearing produces excellent low speed pulling power and natural all-wheel engine braking feel, giving added confidence and control on downhills.

    • alt

      Independent suspension, front disc brakes

      The Kodiak 700 EPS's compact independent double wishbone A-arms and long-travel KYB shocks give high levels of comfort, together with good manoeuvrability, and can handle the most extreme terrain. For durable and reliable braking the Kodiak 700 EPS is fitted with front disc brakes and a sealed wet rear brake.

    • alt

      On-Command® 2WD/4WD/Diff-lock

      The Kodiak 700 EPS models are fitted with an easy to operate On-Command® system with 2WD/4WD and 4WD with Diff-lock for full control for quick and effective switching between 2WD and 4WD, or even full Diff-lock allowing you to choose the right option to suit the terrain and surface conditions.

    • alt

      Carrying capacity and winch

      Durable front and rear racks give a high load carrying capacity of 140kg, and the Kodiak 700 EPS can tow 600kg, making it a strong work companion in the farm, factory or forest. The front-mounted WARN VRX 25 winch comes as standard in Europe, while EPS models come with a 2-inch receiver hitch, making this the ultimate compact utility vehicle.

    • alt

      Electric Power Steering (EPS)

      For added comfort and reduced physical effort the Kodiak 700 EPS model is equipped with Electronic Power Steering (EPS) that has been designed to offer the best balance of rider assist and positive feedback. By maintaining light steering and precise handling, this system enhances rider comfort, confidence and control.

    • alt

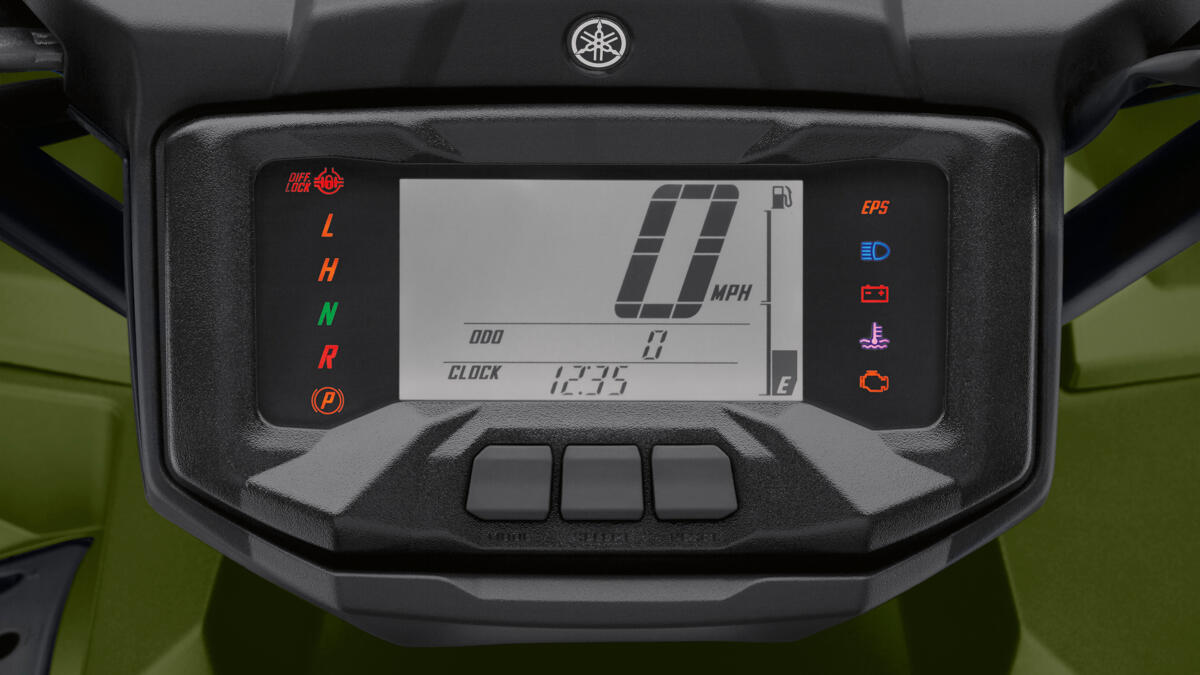

      Comprehensive instrumentation

      The Kodiak 700 EPS features a digital meter with a fuel gauge, speedometer, odometer, dual trip meters, hour meter, clock, 4WD status, gear selector and EPS warning light.

    Technical Specifications

    Download Factsheet
    • Engine
      Engine type
      Single cylinder, Liquid-cooled, 4-stroke, SOHC, 4-valves
      Displacement
      686cc
      Bore x stroke
      102.0 mm x 84.0 mm
      Compression ratio
      10.0 : 1
      Lubrication system
      Wet sump
      Fuel system
      Electronic Fuel Injection
      Ignition system
      TCI
      Starter system
      Electric
      Transmission system
      L/H/N/R/P, Ultramatic® V-belt with front- and rear wheel engine braking
      Drive system
      On-Command® 2WD, 4WD, 4WD with Diff-lock
      Final transmission
      Shaft
    • Chassis
      Front suspension system
      Independent double wishbone, 180 mm wheel travel, 5 position preload adjustment
      Rear suspension system
      Independent double wishbone, 230 mm wheel travel, 5 position preload adjustment
      Front brake
      Dual ventilated hydraulic disc
      Rear brake
      Multi-disc wet rear brake in rear gearcase
      Front tyres
      Maxxis MU19 AT25x8-12, E marked / steel wheels
      Rear tyres
      Maxxis MU19, AT25x10-12, E Marked / steel wheels
    • Dimensions
      Overall length
      2,070 mm
      Overall width
      1,180 mm
      Overall height
      1,240 mm
      Seat height
      860 mm
      Wheelbase
      1,250 mm
      Minimum ground clearance
      275 mm
      Min. turning radius
      3.2 m
      Fuel tank capacity
      18 litres
      Oil tank capacity
      2.6 litres
    • Loading limits
      Front rack
      50 kg
      Rear rack
      90 kg
    • Additional features
      Steering System
      Ackermann-type with Electronic Power Steering
      Front Mounted Winch
      WARN Pro-Vantage 2500
      Trailer Hitch
      2"Receiver Trailer style hitch, Handle bar worklight, Digital Meter
      Towing capacity
      600 kg
