Kodiak 450 EPS Diff-lock

The versatile, mid-sized ATV featuring added comfort and full control with Electronic Power Steering and Yamaha’s On-Command® system with 2WD/4WD Diff. The Kodiak 450 EPS Diff-lock is the comfortable utility companion who is always ready to help. #DRIVENBYRESULTS

Image Thumbnail

The beauty of work.

With easy to use technology, outstanding durability and Yamaha reliability, the Kodiak 450 EPS Diff-lock can take on the toughest jobs in any terrain. Switch seamlessly between 2WD and 4WD and 4WD with full Differential Lock at the push of a button – this versatile mid-sized utility ATV makes every task more relaxing and enjoyable.

In terms of comfort and convenience, nothing comes close! The gutsy Kodiak 450 EPS Diff-lock is the perfect companion for hard work in any utility setting.

At a glance

           Versatile and practical mid-sized utility ATV
The most durable ATV transmission on the market
All day comfort, added functionality, easy to use
Compact body design with roomy riding space
Less fatigue and more precise handling by EPS
Stable & planted handling and steering
Driver selectable wheel drive system
Low gear for hauling and tough terrain
Excellent capacity to stow or tow cargo
T-category homologation optional



Kodiak 450 EPS Diff-lock

With its rugged chassis and high-torque engine, the Kodiak 450 EPS Diff-lock is a tireless worker that can carry 120kg on its racks - or tow up to 600kg - allowing you to traverse extreme terrain with tools, provisions or equipment.

Kodiak 450 EPS Diff-lock

360° quick view

0%

Olive Green

Key Features

Features Gallery

Image Thumbnail

Yamaha 421cc EFI engine

The Kodiak 450 EPS Diff-lock has the power to conquer the toughest terrain thanks to its 421cc single cylinder liquid cooled engine that produces plenty of smooth torque at low revs. Its Electronic Fuel Injection system ensures easy starting in hot or cold conditions at a range of altitudes, giving reliable and economical performance wherever you go.
25-inch tyres with wide tread width

So that you can find the optimum traction even on the most challenging terrain the Kodiak 450 EPS Diff-lock is fitted with specially developed front and rear tyres. Featuring an all-terrain tread pattern, the extra-wide AT25x8-12 front tyres and the AT25x10-12 rear tyres find extra grip whether you're riding across mud, snow and rock.
Long-stroke KYB gas charged front and rear shocks

The all-round independent double wishbone suspension gives 171mm front wheel travel and 189mm rear wheel travel, helping to make light work of extreme terrain. And with their ability to soak up bumps, ruts and other obstacles, the KYB gas-charged adjustable shocks deliver all day riding comfort.

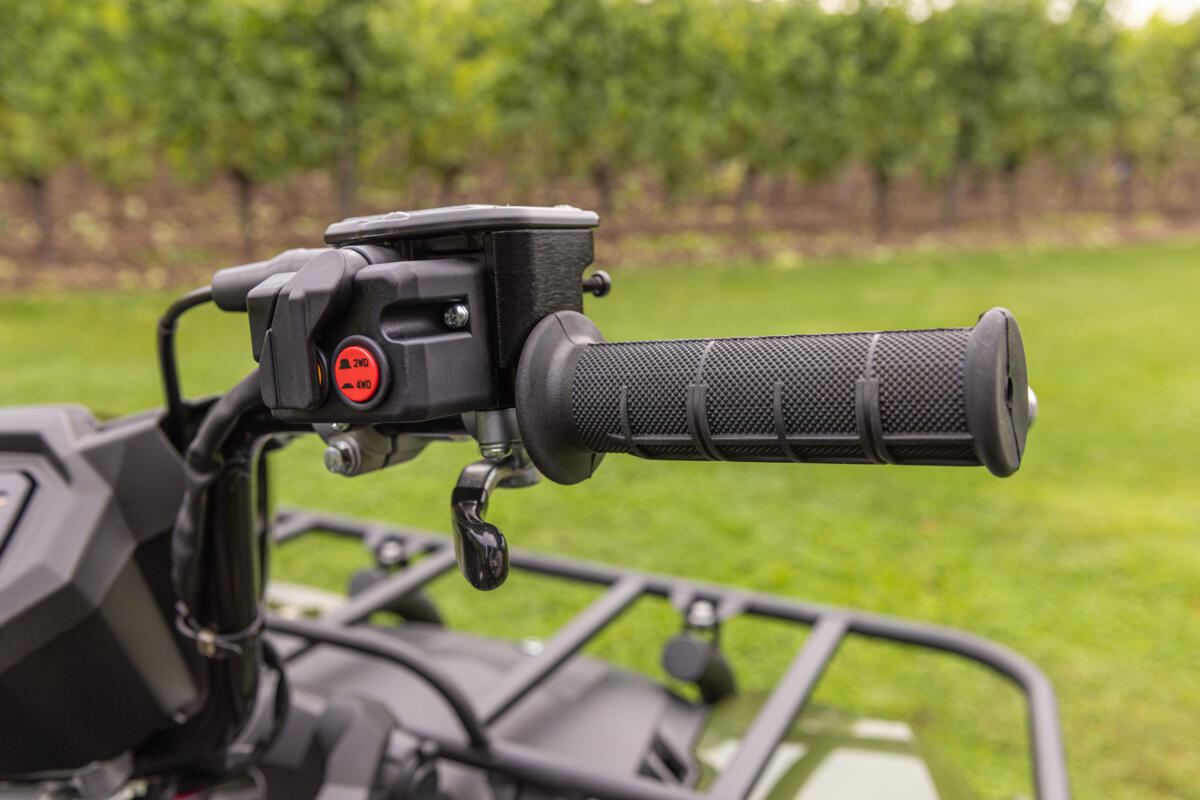

On-Command® 2WD/4WD/Diff-lock

The Kodiak 450 EPS Diff-lock models are fitted with an easy to operate On-Command® system with 2WD/4WD and 4WD with Diff-lock for full control and for quick and effective switching between 2WD and 4WD, or even full Diff-lock allowing you to choose the right option to suit the terrain and surface conditions.
Electric Power Steering (EPS)

The Kodiak 450 EPS Diff-lock model is equipped with Yamaha's highly acclaimed Electronic Power Steering (EPS) that is specially designed to give you the best balance of rider assist combined with a natural and positive feel. And for additional illumination, the EPS model features a powerful halogen handlebar-mounted high beam headlight.

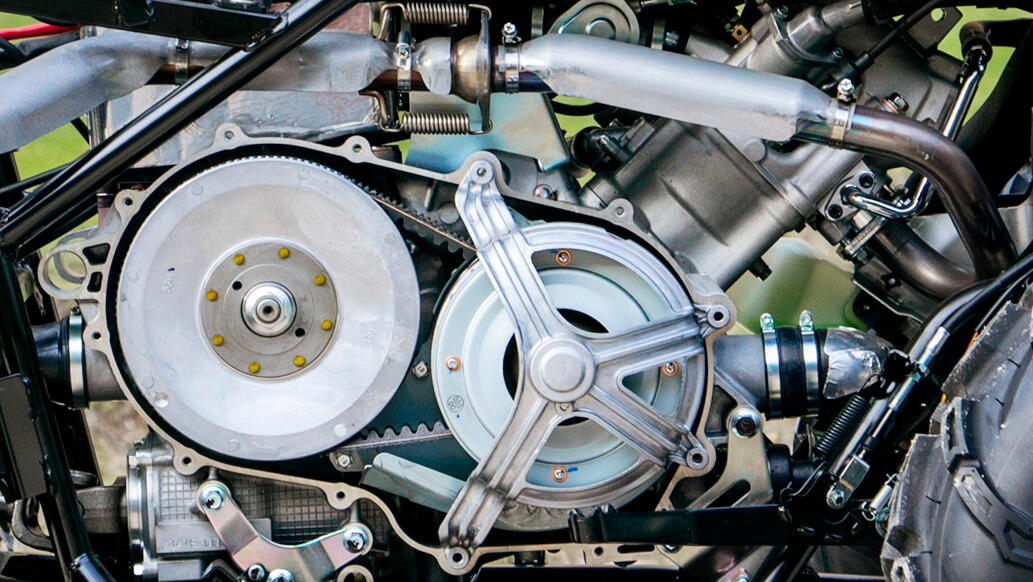

Ultramatic® CVT transmission

Ultramatic® CVT automatic transmission makes every trip easier and more enjoyable, both for seasoned riders and also for new entrants to the mid-sized utility ATV class. Its durable V-belt delivers smooth acceleration - and the Kodiak 450 EPS Diff-lock's sophisticated all-wheel engine braking system gives you added confidence and control on downhills.
Precise and nimble handling

All day comfort comes as standard with the Kodiak 450 EPS Diff-lock making this mid-sized utility ATV ideal for work and play. Featuring a low centre of gravity, the designed chassis delivers precise, nimble and confident handling for maximum riding enjoyment - and for an extra smooth ride, the engine features special vibration-reducing mounts..
Compact body size with full size ergonomics

By choosing the Kodiak 450 EPS Diff-lock you're getting the best of both worlds, because this mid-sized utility ATV benefits from a compact and stylish body design that's easy to manoeuvre in difficult terrain - while the spacious and ergonomic riding position ensures all day comfort whether you're working hard or enjoying some time off.
Handlebar mounted LCD dashboard

The handlebar mounted LCD dashboard features neutral, reverse and park indicator lights on the left - with coolant temperature, engine management and a 4WD engagement indicator on the right. And to keep you informed throughout your ride, the LCD display includes a speedometer, odometer, tripmeter, hour/service meters and fuel meter.
Taking mid-sized utility ATV design to the next level

The Kodiak 450 EPS Diff-lock features the same rugged, functional and user-friendly design as our legendary big bore Kodiak 700. With a range of service friendly features, including an easily accessible air filter and oil dipstick, this tough mid-sized utility ATV is built to get the job done in the toughest terrain.
WARN VRX 25 winch

To underline its position as the definitive mid-sized utility ATV, the Kodiak 450 EPS Diff-lock is fitted with a powerful WARN VRX 25 winch. With a payload capacity of 40kg on the front rack and 80 kg on the rear rack - as well as a towing capacity of 500kg - this rugged all terrain vehicle is ready to work tirelessly in the farm, forest or paddock.

Technical Specifications

Download Factsheet

Engine

Engine type

Single cylinder, Liquid-cooled, 4-stroke, SOHC

Displacement

421cc

Bore x stroke

84.5 mm x 75.0 mm

Compression ratio

10.0 : 1

Lubrication system

Wet sump

Fuel system

EFI - 34mm Mikuni

Ignition system

TCI

Starter system

Electric

Transmission system

L/H/N/R/P, Ultramatic® V-belt with front- and rear wheel engine braking

Drive system

On-Command® 2WD, 4WD, 4WD with Diff-lock

Final transmission

Shaft
Chassis

Front suspension system

Independent double wishbone, 171 mm wheel travel, 5 position preload adjustment

Rear suspension system

Independent double wishbone, 189 mm wheel travel, 5 position preload adjustment

Front brake

Dual hydraulic disc

Rear brake

Sealed oil-bathed multi-disc

Front tyres

AT25x8-12 6ply, E marked / steel wheels

Rear tyres

AT25x10-12 6ply, E marked / steel wheels
Dimensions

Overall length

2,035 mm

Overall width

1,180 mm

Overall height

1,160 mm

Seat height

855 mm

Wheelbase

1,240 mm

Minimum ground clearance

245 mm

Min. turning radius

3.2 m

Fuel tank capacity

14 litres

Oil tank capacity

2.6 litres
Loading limits

Front rack

40 kg

Rear rack

80 kg
Additional features

Steering System

Ackermann-type with Electronic Power Steering

Front Mounted Winch

WARN VRX 25

Trailer Hitch

2"Receiver Trailer style hitch, Handle bar worklight, Small Digital meter

Towing capacity

600 kg
