YXZ1000R SS

#DRIVENBYVICTORY. We developed the high-performance YXZ models by drawing on the true racing DNA in the Yamaha heritage. The high-revving Yamaha engine, coupled with the sequential Sport Shift gearbox is at the heart of this high-performance machine, creating the perfect formula for a genuinely exciting new driving sensation.
Image Thumbnail

Semi-automatic firepower.

With this dynamic model, we’ve taken off-road performance to the next level, creating the highest specification SxS ever! Its rally-style paddle gives instant fingertip control for clutchless full-throttle shifting - and with its YCC-S-activated launch control system used from a standing start, nothing comes close.

Equipped with 29" Inch Big Horn tyres on 14-inch cast aluminium wheels and recalibrated long-travel suspension, the YXZ1000R SS is built to dominate the most extreme terrain.

At a glance

  • The ultimate in off-road fun and excitement
  • Stylish body, hood and sleek, straight ROPS design
  • Compact, high-powered 3-cylinder 998cc engine
  • Dual rear-mounted radiators with hi-volume fans
  • Sequential manual 5-speed gearbox with reverse
  • Sport-Shift paddle levers give total control
  • Intelligent Yamaha chip-controlled shift (YCC-S)
  • Refined fast and efficient clutch-less SE shifting
  • Smooth, seamless upshifting even on full throttle
  • Simple launch control system for instant take-off
  • Recalibrated FOX® Podium 2,5 front & rear shocks
  • 29" Big Horn tyres on 14" aluminium wheels
  • T-category homologation options are offered by Yamaha; verify details with your local Dealer.

YXZ1000R SS

Our heritage in racing and position as a leading manufacturer of sports ATVs gave us a unique perspective - and a solid engineering base - from which we have created the next generation of adrenaline-charged Side-by-Side models, the YXZ family.

YXZ1000R SS
360° quick view

    Key Features

    Features Gallery
    Image Thumbnail
    info The unit depicted in these images is equipped with optional Yamaha Genuine Accessories.
    • alt

      High-performance 3-cylinder engine

      The 998cc DOHC engine is an ultra-compact 3-cylinder, 12-valve layout, delivering breathtaking acceleration all the way up to its thrilling 10,500 rpm red line – in fact, it creates a whole new class on the SxS scene. What’s more, the heat-treated conrods are designed to take further race-tuning – whenever you’re ready for even more power!

    • alt

      Rear-mounted radiator

      For this advanced design, the radiator was moved from the front of the vehicle to high up on the rear cargo area to avoid mud clogging. The twin hi-volume radiator fans provide a massive airflow to keep engine temperature under control in all conditions.

    • alt

      Clutchless Sport Shift system

      The Sport Shift system is similar to the design used on rally and race cars, and features paddles on either side of the steering column. The refined and recalibrated electronics mean you can shift very rapidly through the 5-speed gearbox using only your fingertips!

    • alt

      Yamaha Chip Controlled Shift (YCC-S)

      The intelligent Yamaha Chip Controlled Shift (YCC-S) is the key to the Sport Shift system. The sophisticated YCC-S monitors a series of sensors and instantaneously disengages and engages the clutch when required, for seamless deceleration and acceleration. Clutch shifting and engagement is also faster at lower speed, which improves crawling performance.

    • alt

      Launch-control system

      Our awesome launch-control system allows you to accelerate very rapidly from a standstill and power through the 5-speed transmission at full throttle where conditions permit. Initiated by pulling back both paddles simultaneously while pressing the foot brake, this YCC-S-controlled system sets you free when you release the brake and paddles.

    • alt

      Stylish body and ROPS design

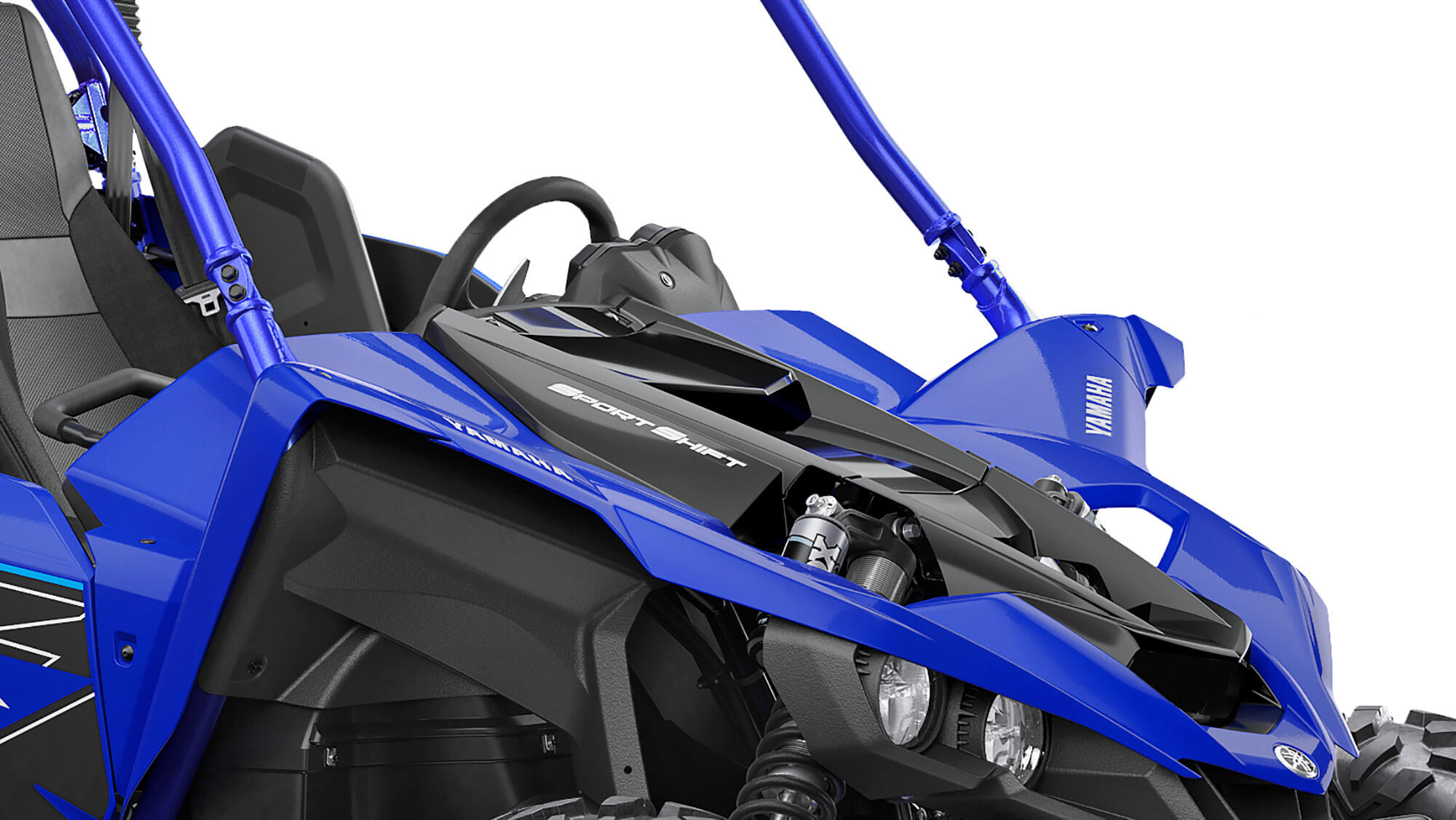

      The front hood design incorporates a special mounting space for the installation of night-riding LED lights and despite the dominant radiator location, we’ve found room for a small cargo area at the rear. The ROPS has a straight top bar which not only looks sleeker, but also improves forward visibility when climbing. The extra cross bar at the rear adds to the overall structural strength.

    • alt

      29" Big Horn Tires and FOX® Podium Shocks

      The 29" 8 ply Big Horn tyres - mounted on 14" aluminium wheels - are more durable, increase ground clearance and are ready to tackle any terrain. The FOX® Podium 2,5 shocks are recalibrated to match.

    Technical Specifications

    Download Factsheet
    • Engine
      Engine type
      Liquid-cooled, 4-stroke, 4-valves, DOHC, Three Cylinder
      Displacement
      998cc
      Bore x stroke
      80.0 mm x 66.2 mm
      Compression ratio
      11.3:1
      Lubrication system
      Dry sump
      Fuel system
      Triple Mikuni 41 mm
      Ignition system
      TCI
      Starter system
      Electric
      Transmission system
      Constant Mesh, 5-speed.forward, Electric Paddle Shift
      Drive system
      On-Command® 2WD, 4WD, 4WD with Diff-lock
      Final transmission
      Shaft
    • Chassis
      Front suspension system
      Independent double wishbone with Anti-Sway bar, 412 mm wheel travel, Fox® 2.5 Podium RC2 Single Spring
      Rear suspension system
      Independent double wishbone with Anti-Sway bar, 432 mm wheel travel, Fox® 2.5 Podium RC2 Single Spring
      Front brake
      Dual hydraulic disc
      Rear brake
      Dual hydraulic disc, Shaft mounted parking brake
      Front tyres
      Maxxis BIghorn M917, AT29x9.00R-14, Cast aluminium wheels
      Rear tyres
      Maxxis BIghorn M918, AT29x11.00R-14, Cast aluminium wheels
    • Dimensions
      Overall length
      3,121 mm
      Overall width
      1,626 mm
      Overall height
      1,834 mm
      Wheelbase
      2,300 mm
      Min. turning radius
      6.0 m
      Minimum ground clearance
      330 mm
      Wet weight (including full oil and fuel tank)
      685 kg / 699 kg
      Fuel tank capacity
      34.0 L
      Oil tank capacity
      3.4 L
    • Loading limits
      Cargo bed
      136 kg
    • Additional feature
      Steering System
      Ackermann-type with Electronic Power Steering
      Instrumentation
      Analog Tachometer, Digital Speedometer w/ Shift Indicator, LCD Display w/ Odometer, Dual Trip Meters, Battery Voltage, Hour Meter, Fuel Meter, Clock, Water Temp, Gear Position Indicator, 4WD/Diff-Lock Status, EPS and Engine Trouble
